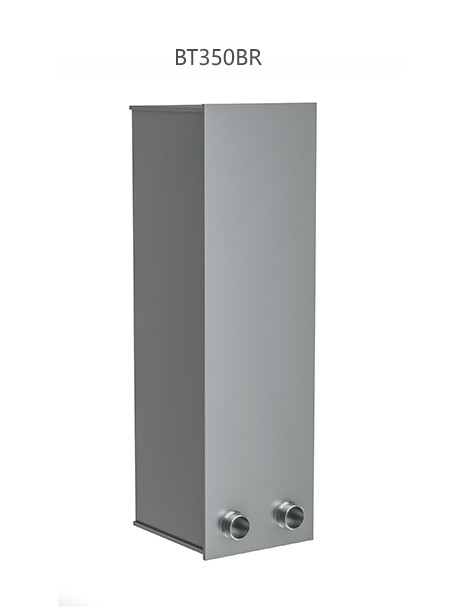

Name: Box Type Q35 Fusion Bonded Plate Heat Exchanger Female Thread Connection
Brand: Tenkai
SKU: BT350BR
Rating: 4.6 (144 reviews)

Box Type Q35 Fusion Bonded Plate Heat Exchanger Female Thread Connection

Basic Information

Place of Origin:	CHINA
Brand Name:	Tenkai
Certification:	ISO9001-2015
Model Number:	BT350BR

Minimum Order Quantity:	1 Piece
Price:	Negotiate
Packaging Details:	Wooden Box Package
Delivery Time:	Within one week
Payment Terms:	L/C, T/T, D/P, Western Union
Supply Ability:	230pcs/Day

Get Best Price Contact Now

Detail Information

Material:	Stainless Steel	Stainless Steel Design Temperature:	-196 ℃-550 ℃
Stainless Steel Max Design Pressure:	2.5 Mpa	Connection Mode:	Female Thread, Flange,Soldering
Warranty Period:	1 Year	Structure:	Plate Heat Exchanger
Highlight:	Q35 Fusion Bonded Plate Heat Exchanger , Q35 industrial plate heat exchanger

Product Description

Box Type Fusion Bonded Plate Heat Exchanger

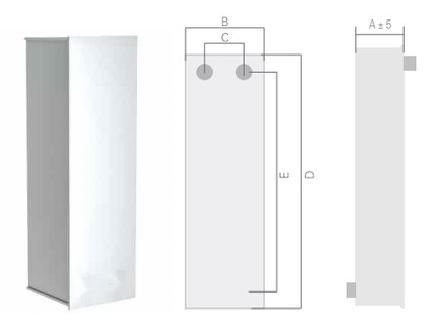

TYPE

B(mm)

C(mm)

D(mm)

E(mm)

THICKNESS(mm)

WEIGHT(Kg)

MAX FLOW m3/h)

DESIGN PRESSURE (Mpa)

BT350BR

318

160

1060

912

44+2.23N

79.3+1.31N(N<132)

82.23+1.404N(N≥132)

0.5

Introduction :

Box Type Fusion Welded Plate Heat Exchanger , box material is Q35 , all stainless steel inside welded plate heat exchanger .

System design available for assemble for signle component , also can assemble with more box type heat exchanger .

The operating temperature 0-170 ℃ , satisfy application in special industry .

Fatigue Test Area :

Box Type Q35 Fusion Bonded Plate Heat Exchanger Female Thread Connection 0

Raw Material Area :

Box Type Q35 Fusion Bonded Plate Heat Exchanger Female Thread Connection 1

Factory Show :

Box Type Q35 Fusion Bonded Plate Heat Exchanger Female Thread Connection 2
