Name: High Durability Copper BPHE Heat Exchanger Central Boiler Plate Heat Exchanger SB28B
Brand: Tenkai
SKU: SB28B
Rating: 4.5 (197 reviews)

Detail Information

Material:	Copper	Max Design Pressure:	4.5 Mpa
Connection Mode:	Male Thread , Female Thread, Flange, Soldering	Warranty Period:	1 Year
Structure:	Plate	HS CODE:	8419500090
Application:	HVAC Industry/Chemical/Electronic/Pharmacy And Health Industry
Highlight:	Copper BPHE Heat Exchanger , BPHE Central Boiler Plate Heat Exchanger , Central Boiler BPHE Heat Exchanger

Product Description

Versatility, And Durability Industrial Brazed Plate Heat Exchanger Series SB28B

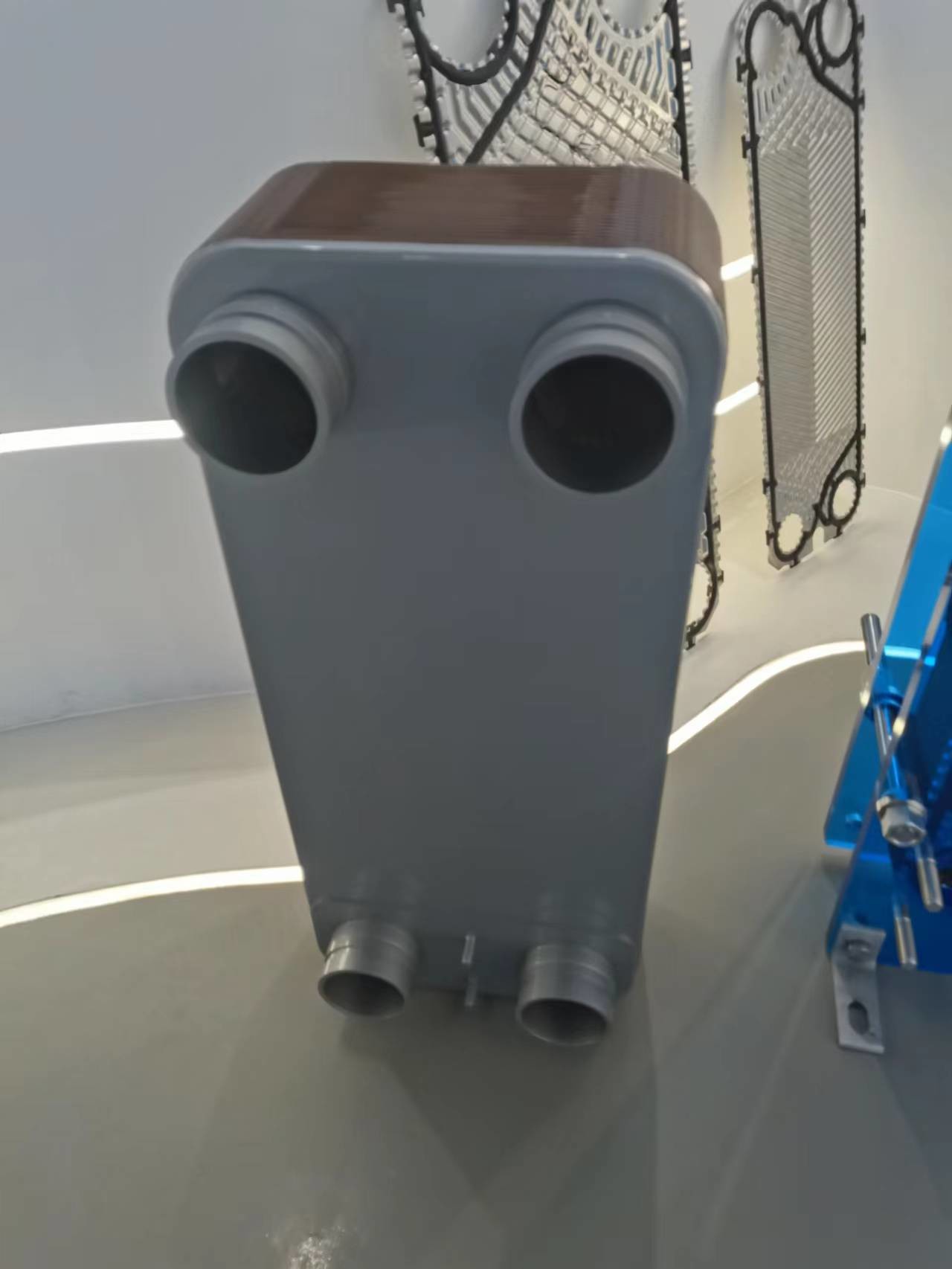

High Durability Copper BPHE Heat Exchanger Central Boiler Plate Heat Exchanger SB28B 0

Product Features:

High Heat Transfer Efficiency: The brazed plates provide a large surface area for heat transfer, resulting in high thermal efficiency and improved performance.

Excellent Thermal Performance: The brazing process ensures a strong bond between the plates, allowing for minimal thermal resistance and efficient heat transfer.

Quick and Responsive: Due to the compact design and efficient plate arrangement, brazed plate heat exchangers offer rapid heat exchange and quick response to changing conditions.

Durable and Reliable: The brazed construction provides excellent resistance to corrosion and mechanical stress, ensuring long-term durability and reliable operation.

Cost-Effective: Brazed plate heat exchangers offer a cost-effective solution for heat transfer applications, with their high efficiency, compact size, and long service life.

In summary, brazed plate heat exchangers are known for their compact size, high heat transfer efficiency, excellent thermal performance, wide operating range, durability, and cost-effectiveness.

TYPE	B(mm	C(mm	D(mm)	E(mm)	Thickness (mm)	Weight(Kg)	Max Flow (m3/h)	Design Pressure (Mpa)
SB14	77	42	206	172	9+2.3N	0.7+0.06N	8	1/3/4.5
SB16	78	42	208	172	9+2.24N	0.6+0.049N	8	1/3/4.5
SB18	95	50	210	165	7+3.1N	0.7+0.06N	8	1
SB20B	78	42	318	282	9+2.3N	1+0.08N	8	3/4.5
SB20C	77	42	313	278	10+1.28N	0.9+0.07N	8	3/4.5
SB26	111	50	310	250	10+2.32N	1.3+0.12N	18	3/4.5
SB26F	107	50	307	250	10+1.98N	1.3+0.1N	18	3/4.5
SB28B	120	72	290	243	10+2.36N	1.5+0.133N	18	3/4.5
SB28C	120	63	290	234	10+2.36N	1.5+0.133N	18	3/4.5
SB30	126	70	307	250	10+2.35N	2.2+0.16N	18	3/4.5
SB52A	111	50	526	466	9+2.32N	2.6+0.21N	18	3/4.5
SB52B	111	50	526	466	9+2.32N	2.6+0.19N	18	3/4.5
SB53	106	50	522	466	9+2.1N	2.6+0.27N	18	3/4.5
SB62A	120	63	528	470	10+2.35N	2.379+0.194N	18	3/4.5
SB62B	120	63	528	470	10+2.35N	2.379+0.194N	18	3/4.5
SB65	125	65	540	480	11+2.28N	2.5+0.228N	18	3/4.5
SB95A	189	92	616	519	11+2.7N	7.8+0.44N	42	3/4.5
SB95B	189	92	616	519	11+2.7N	7.8+0.44N	42	3/4.5
SB120A	246	174	528	456	10+2.34N	7.2+0.52N	42	3/4.5
SB120B	246	174	528	456	10+2.34N	7.2+0.52N	42	3/4.5
SB190	303	179	695	567	13+2.3N	12+0.61N	100	1.6/2.1/3
SB200A	320	188	742	603	14+2.7N	13+0.67N	100	1.5/2.1/3
SB200B	320	188	742	603	14+2.7N	13+0.67N	100	1.5/2.1/3
SB200E	320	207	742	624	14+2.7N	13+0.67N	100	1.5/2.1/3
SB202	319	188	741	603	16+2.85N	13+0.957N	100	2.1/3
SB300	370	118(95.5)	995	861(816)	17+2.675N	20+1.26N	200	1.6/2.1/3
SB500	304	179	982	854	17+2.29N	26.6+0.93N	200	2.1/3
SB01	390	204	1320	1132	22+2.75N	30+1.8N	300	3/4.5

High Durability Copper BPHE Heat Exchanger Central Boiler Plate Heat Exchanger SB28B 1

High Durability Copper BPHE Heat Exchanger Central Boiler Plate Heat Exchanger SB28B 2

High Durability Copper BPHE Heat Exchanger Central Boiler Plate Heat Exchanger SB28B 3

Tag:

Place of Origin:	CHINA
Brand Name:	Tenkai
Certification:	ISO9001-2015
Model Number:	SB28B

Minimum Order Quantity:	4 Package
Price:	Negotiate
Packaging Details:	Wooden Box Package
Delivery Time:	Within one week
Payment Terms:	L/C, T/T, D/P
Supply Ability:	450pcs/Day
