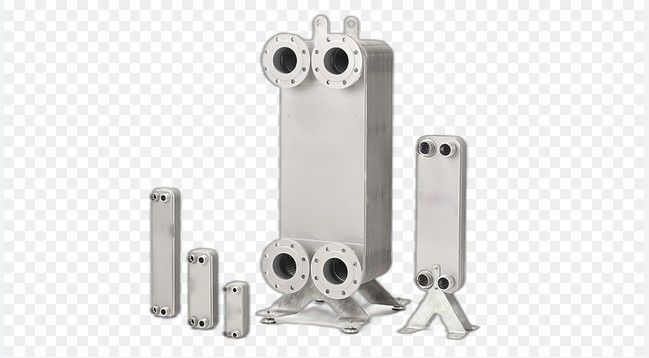

Stainless Steel Welded Plate Heat Exchanger With High Corrosion Resistance
Applications
| TYPE |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
THICKNESS(mm) |
WEIGHT(Kg) |
MAX FLOW m3/h) |
DESIGN PRESSURE (Mpa) |
| BT350BR |
318 |
160 |
1060 |
912 |
44+2.23N |
79.3+1.31N(N<132)
82.23+1.404N(N≥132)
|
50 |
0.5 |
|
|
|
Introduction :
Box Type Fusion Welded Plate Heat Exchanger , box material is Q35 , all stainless steel inside welded plate heat exchanger .
System design available for assemble for signle component , also can assemble with more box type heat exchanger .
The operating temperature 0-170 ℃ , satisfy application in special industry .
A box-type fusion-welded plate heat exchanger is a highly efficient heat transfer device that consists of a series of welded plates enclosed within a box-like structure. It is designed to provide optimal heat transfer performance and is commonly used in various industrial applications.
The fusion-welded plate heat exchanger features a compact and lightweight design, making it suitable for installations where space is limited. The plates are made of high-quality materials, such as stainless steel or titanium, which offer excellent corrosion resistance and durability.
The heat transfer process in a box-type fusion-welded plate heat exchan
ger occurs through alternating channels formed by the welded plates. The hot and cold fluids flow through these channels, allowing for efficient heat exchange. The welding technique ensures a secure and leak-free connection between the plates, maintaining the integrity of the system.
One of the key advantages of a box-type fusion-welded plate heat exchanger is its ability to handle high-pressure and high-temperature applications. It is commonly used in industries such as oil and gas, chemical processing, power generation, and refrigeration.
The compact design of the heat exchanger enables efficient heat transfer, resulting in reduced energy consumption and improved overall system performance. Additionally, its modular construction allows for easy maintenance, cleaning, and inspection of the plates.
The box-type fusion-welded plate heat exchanger offers versatility and flexibility, as it can be customized to meet specific process requirements. It can be designed for single-pass or multi-pass configurations, depending on the thermal and flow characteristics of the fluids being handled.
