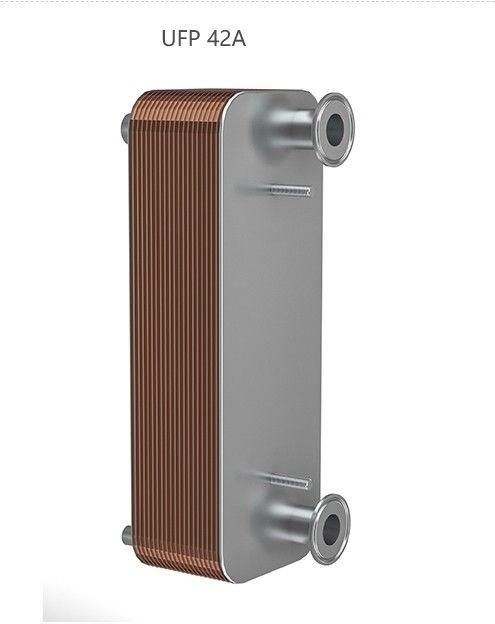

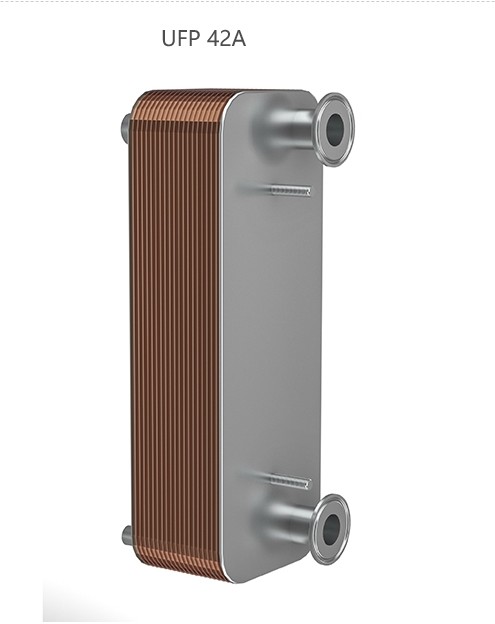

Unequal Flow Path Heating Plate Heat Exchanger Copper Brazed Heat Exchanger 4.5Mpa

Heat Conduction Performance Type UFP42a Asymmetric Flow Path Brazed Plate Heat Exchanger

Product Introduce :

Unequal Flow Path is the one kind of innovative , patent which incoming from Brazed Heat Exchanger , this kind of unequal flow path signify it is different on cold and heat for path volume . It is beneficial to take advantage of reasonable pressure drop on two flanks , If there is different flow or different fluid properties , for example oil and water , or different reasonable pressure drop needed on two flanks . Then ,  optimized heat transfer , so as to make the quantity of heat exchanger plate in unit reduce to the minimum , in some cases , the quantity of heat exchanger under the same load max reduce 25% . The path volume of primary side is 25% larger than secondary side .
