Detail Information

Material:	Copper	Max Design Pressure:	4.5 Mpa
Connection Mode:	Male Thread , Female Thvead, Flange, SAE Flange, Soldering	Warranty Period:	One Year
Structure:	Plate Heat Exchanger	HS CODE:	8419500090
Application:	HVAC Industry/Chemical/Electronic/Food/Pharmacy And Petrochemical Industries
Highlight:	Petrochemical Industries Brazed Heat Exchanger , Petrochemical Industries brazed plate condenser , Heating Brazed Plate Heat Exchanger

Product Description

Petrochemical Industries, For Heating, Cooling, And Heat Recovery Applications Brazed Plate Heat Exchanger

Process Industries: Brazed plate heat exchangers are employed in various process industries, including chemical, pharmaceutical, food and beverage, and petrochemical industries, for heating, cooling, and heat recovery applications.

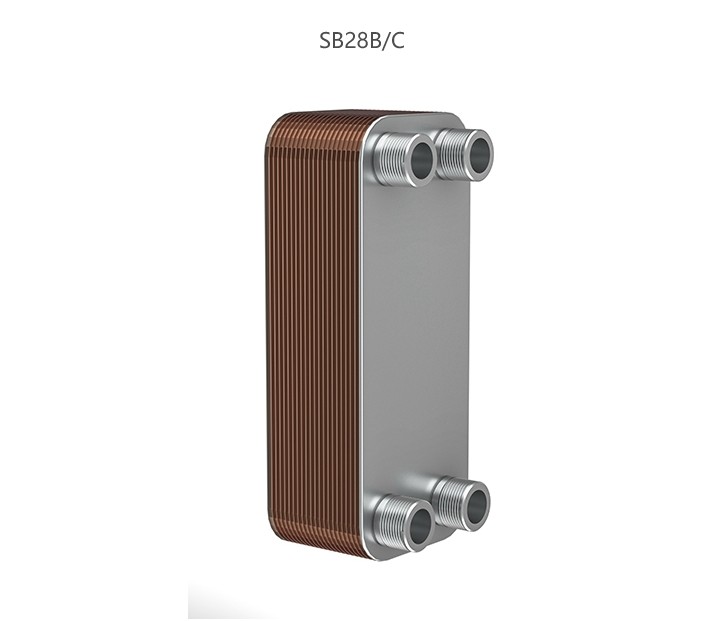

Petrochemical Industries Brazed Plate Heat Exchanger For Heating Cooling 0

Application:

Heat Exchanger in common use heating cryogenic fluid or cooling high temperature fluid during the producing in petroleum, chemical industry, light industry, pharmacy, energy etc. transmit liquid to steam through nebulization . Heat Exchanger is elementary component such as heater, cooler , condenser and also the part of tech equipment .

Development :

Heat Exchanger is the energy-efficient equipment which realize heat transfer between materials in two types or above two types fluid with different temperature , make heat transmit from higher temperature to lower temperature of the fluid , and make fluid temperature match stated index in order to reach the require of tech condition , in meanwhile , also the mainly equipment for improving energy utilization rate . It is widely use in heating and ventilation, pressure vessel , water treating equipment, chemical, petroleum, metallurgy, electric power, ship, supply heating, food, refrigeration air conditioner , pharmacy, etc ....

TYPE	B(mm	C(mm	D(mm)	E(mm)	Thickness (mm)	Weight(Kg)	Max Flow (m3/h)	Design Pressure (Mpa)
SB14	77	42	206	172	9+2.3N	0.7+0.06N	8	1/3/4.5
SB16	78	42	208	172	9+2.24N	0.6+0.049N	8	1/3/4.5
SB18	95	50	210	165	7+3.1N	0.7+0.06N	8	1
SB20B	78	42	318	282	9+2.3N	1+0.08N	8	3/4.5
SB20C	77	42	313	278	10+1.28N	0.9+0.07N	8	3/4.5
SB26	111	50	310	250	10+2.32N	1.3+0.12N	18	3/4.5
SB26F	107	50	307	250	10+1.98N	1.3+0.1N	18	3/4.5
SB28B	120	72	290	243	10+2.36N	1.5+0.133N	18	3/4.5
SB28C	120	63	290	234	10+2.36N	1.5+0.133N	18	3/4.5
SB30	126	70	307	250	10+2.35N	2.2+0.16N	18	3/4.5
SB52A	111	50	526	466	9+2.32N	2.6+0.21N	18	3/4.5
SB52B	111	50	526	466	9+2.32N	2.6+0.19N	18	3/4.5
SB53	106	50	522	466	9+2.1N	2.6+0.27N	18	3/4.5
SB62A	120	63	528	470	10+2.35N	2.379+0.194N	18	3/4.5
SB62B	120	63	528	470	10+2.35N	2.379+0.194N	18	3/4.5
SB65	125	65	540	480	11+2.28N	2.5+0.228N	18	3/4.5
SB95A	189	92	616	519	11+2.7N	7.8+0.44N	42	3/4.5
SB95B	189	92	616	519	11+2.7N	7.8+0.44N	42	3/4.5
SB120A	246	174	528	456	10+2.34N	7.2+0.52N	42	3/4.5
SB120B	246	174	528	456	10+2.34N	7.2+0.52N	42	3/4.5
SB190	303	179	695	567	13+2.3N	12+0.61N	100	1.6/2.1/3
SB200A	320	188	742	603	14+2.7N	13+0.67N	100	1.5/2.1/3
SB200B	320	188	742	603	14+2.7N	13+0.67N	100	1.5/2.1/3
SB200E	320	207	742	624	14+2.7N	13+0.67N	100	1.5/2.1/3
SB202	319	188	741	603	16+2.85N	13+0.957N	100	2.1/3
SB300	370	118(95.5)	995	861(816)	17+2.675N	20+1.26N	200	1.6/2.1/3
SB500	304	179	982	854	17+2.29N	26.6+0.93N	200	2.1/3
SB01	390	204	1320	1132	22+2.75N	30+1.8N	300	3/4.5

Workshop :

Petrochemical Industries Brazed Plate Heat Exchanger For Heating Cooling 1

Package:

Petrochemical Industries Brazed Plate Heat Exchanger For Heating Cooling 2

Petrochemical Industries Brazed Plate Heat Exchanger For Heating Cooling 3

Tag:

Place of Origin:	CHINA
Brand Name:	Tenkai
Certification:	ISO
Model Number:	SB28C

Minimum Order Quantity:	1 Package
Price:	Negotiate
Packaging Details:	Wooden Box Package
Delivery Time:	Within one week
Payment Terms:	L/C, T/T, D/P
Supply Ability:	600pcs/Day
