Name: SM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B Series
Brand: Tenkai
SKU: B30B
Rating: 4.8 (163 reviews)

Detail Information

Material:	SM0254	Max Design Pressure:	1.0 Mpa
Connection Mode:	Clamp,Flange,External Thread	Warranty Period:	One Year
Structure:	Gasket	HS CODE:	8419500090
Application:	Metallurgical/HVAC Industry/Chemical/Electronic
Highlight:	SM0254 gasketed plate heat exchanger , SM0254 industrial plate heat exchangers , Metallurgical Industry gasketed plate heat exchanger

Product Description

B30B Series Gasket Plate Heat Exchanger SM0254 Material For Metallurgical Industry

Introduction :

Gasket Plate Heat Exchanger is a heat transfer device that consists of a series of individual plates that can be easily disassembled and reassembled. Each plate has special patterns that create flow channels for the hot and cold fluids, allowing efficient heat exchange to occur. The detachable design offers flexibility for maintenance, cleaning, and modifications.

Metallurgical industry: Detachable plate heat exchangers are employed in metallurgical furnaces, smelting, and refining processes for cooling and heating operations, enhancing energy utilization efficiency

In summary, detachable plate heat exchangers play a vital role in various industrial sectors, enabling heat recovery, energy conservation, and process optimization.

Gasketed plate heat exchangers offer efficient heat transfer, compact size, and flexibility, making them a popular choice for many heat exchange applications. Their modular design, ease of maintenance, and versatility contribute to their widespread use in various industries.

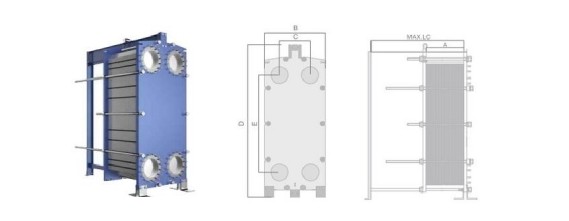

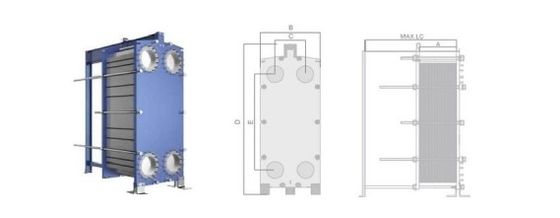

SM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B Series 0

TYPE	A(mm)	B(mm	C(mm	D(mm)	E(mm)	Height ( mm ) ( from middle of bottom to ground )(mm)	MAX,LC (mm)	Connector Path (mm)	Max Flow (m3/h)	Design Pressure (Mpa)	Max Pieces
B30B	N(2.5+X)	180	60	480	357	62	500	32	18	1.0	95
B60B	N2.0+X	320	140	920	640	140	1200	50	36	1.6	250
B60H	N(3.0+X)	320	140	920	640	140	1200	50	36	1.6	203
B100B	N(2.55+X)	470	225	1069	719	183	1600	100	140	1.0/1.6/2.5	278
B100H	N(3.95+X)	470	225	1069	719	200	1600	100	140	1.0/1.6/2.5	180
B150B	N(2.5+X)	610	298	1815	1294	275	3000	150	360	1.0/1.6/2.5	600
B150H	N(3.95+X)	610	298	1815	1294	275	3000	150	360	1.0/1.6/2.5	600
B200H	N(4+X)	780	353	2260	1478	380	3000	200	600	1.0/1.6	480
B250B	N(2.5+X)	920	439	2895	1939	435	3000	250	750	1.0/1.6/2.5	500
B350B	N(3.3+X)	1150	596	2882	1842	470	4800	350	997	1.0/1.6	700

Factory Show :

SM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B Series 3

Package :

SM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B Series 5

SM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B Series 7

Tag:

Place of Origin:	CHINA(Inland)
Brand Name:	Tenkai
Certification:	ISO9001
Model Number:	B30B

Minimum Order Quantity:	2 Packages
Price:	Negotiate
Packaging Details:	Wooden Box Package
Delivery Time:	Within two weeks
Payment Terms:	L/C, T/T, D/P
Supply Ability:	160pcs/Day
