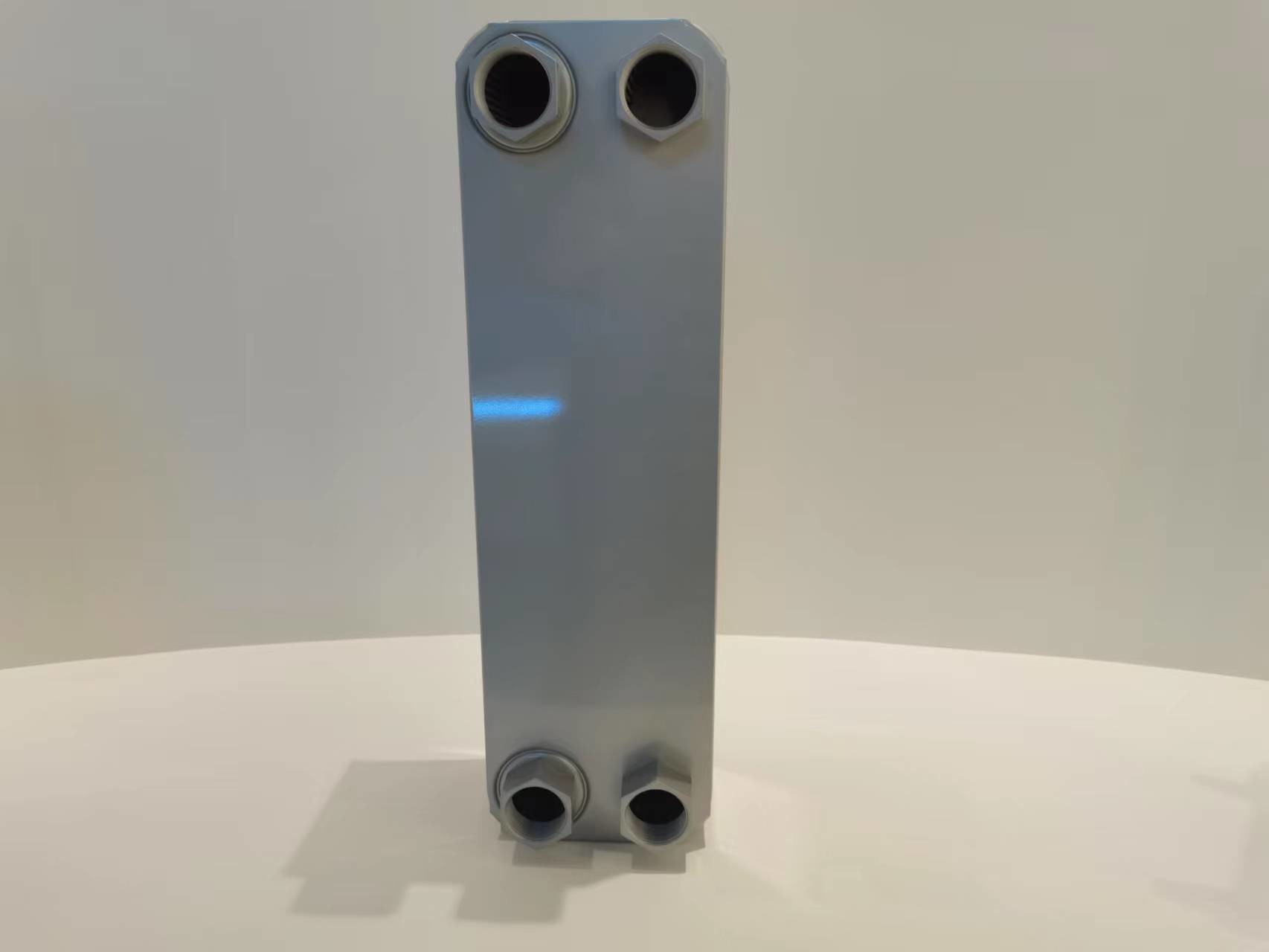

Max 4.5Mpa BPHE Industrial Brazed Plate Heat Exchangers Compact Design

Industrial Brazed Plate Heat Exchanger Hs Code 8419500090

An industrial brazed plate heat exchanger (BPHE) is a type of compact and efficient heat transfer device that consists of a series of corrugated metal plates that are brazed together. The brazing process creates a strong bond between the plates, forming a sealed and leak-free unit. It is widely used in industrial applications where high thermal performance and compactness are essential.

Product Features:

1. Compact Design: Brazed plate heat exchangers have a compact and lightweight construction. The corrugated plates are stacked together and brazed, resulting in a highly efficient heat transfer surface within a small footprint. This compact design makes them suitable for installations with space constraints.

2. High Thermal Efficiency: The corrugated design of the plates creates turbulence in the fluid flow, maximizing heat transfer and enhancing thermal efficiency. The turbulent flow pattern promotes efficient heat exchange between the hot and cold fluids, resulting in optimized heat transfer performance.

3. Brazed Construction: The plates are brazed together using a high-temperature brazing process, typically using copper or nickel as the brazing material. This brazing technique ensures a strong bond between the plates and provides a hermetic seal, making the heat exchanger resistant to leakage and suitable for high-pressure applications.

4. Wide Range of Applications: Industrial brazed plate heat exchangers are used in various industries and applications. They are commonly employed in HVAC systems, refrigeration, automotive, oil and gas, power generation, chemical processing, and many other industrial sectors.

5. Versatile Fluid Compatibility: Brazed plate heat exchangers are compatible with a wide range of fluids, including water, refrigerants, oils, gases, and various chemicals. The selection of plate materials, such as stainless steel or nickel alloys, can be customized to suit the specific application and fluid compatibility requirements.

6. High Pressure and Temperature Capability: Industrial brazed plate heat exchangers are designed to handle high-pressure and high-temperature applications. They can withstand pressures ranging from a few bar to several hundred bar, making them suitable for demanding industrial processes.

7. Easy Maintenance: Brazed plate heat exchangers require minimal maintenance due to their compact design and absence of gaskets. The smooth plate surfaces and easily accessible design simplify cleaning and inspection procedures, contributing to their long-term reliability and operational efficiency.

Industrial brazed plate heat exchangers offer advantages such as high thermal efficiency, compact size, versatility, and durability. These features make them well-suited for various industrial applications where efficient heat transfer, space optimization, and reliability are crucial.
