Central Air Conditioner Brazed Plate Heat Exchanger Refrigeration High Efficiency

Basic Information

Place of Origin:	CHINA
Brand Name:	Tenkai
Certification:	ISO

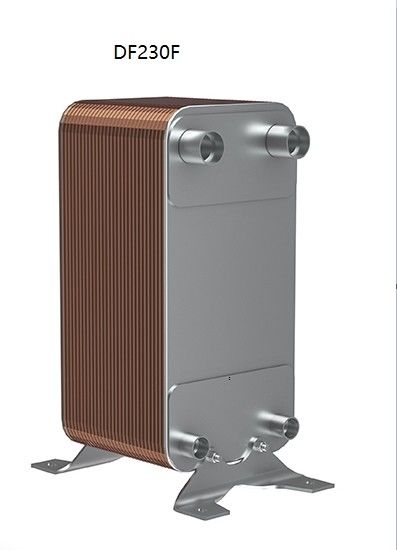

Model Number:	DF250/230F

Minimum Order Quantity:	1pcs
Price:	Negotiate
Packaging Details:	Wooden Box Package
Delivery Time:	Within one week
Payment Terms:	L/C, T/T, D/P
Supply Ability:	500pcs/Day

Get Best Price Contact Now

Detail Information

Material:	Copper/Stainless Steel	Copper Design Temperature:	-196 ℃-225 ℃
Copper MAX Design Pressure:	4.5 Mpa	Stainless Steel Design Temperature:	-196 ℃-550 ℃
Stainless Steel Max Design Pressure:	2.5 Mpa	Connection Mode:	Male Thread , Female Thvead, Flange, SAE Flange, Soldering
Warranty Period:	One Year	Structure:	Plate Heat Exchanger
Application:	Central Air-conditioning , Water Chilling Unit	Heat Transfer Power:	Max 600KW
Highlight:	Central Air Conditioner brazed heat exchanger , High Efficiency refrigeration plate heat exchanger , Central Air Conditioner brazing heat exchanger

Product Description

USE FOR CENTRAL AIR CONDITIONER DIAGONAL FLOW BRAZED HEAT EXCHANGER FROM CHINA

Product Introduce :

Diagonal Flow Brazing Heat Exchanger is special for central air-conditioning , industrial chiller, large-scale heat pump system , etc ...

refrigerating fluid use in duplex compressor , its max heat transfer power can reach 600KW , especially optimization design refrigerating fluid type R410A in the structure .

Product Feature:

High Capacity , High Efficiency , Apply to Polytropic Refrigerant

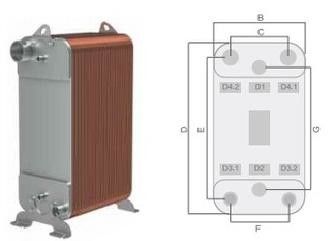

Sheet Data :

TYPE	B(mm)	C(mm	D(mm)	E(mm	F(mm	G(mm)	THICKNESS(mm)	WEIGHT(Kg)	MAX FLOW(m3/h)	DESIGN PRESSURE (Mpa)
ZL230F	249	161	497	414	172	369	13+2.1N	6.5+0.37N	42	3/4.5

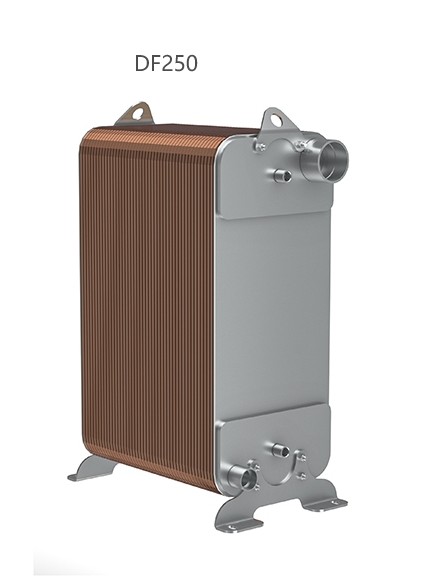

ZL250	319	205.2	736	631.7	224.4	568	15+2.6N	13+0.82N	100	3/4.5

Workshop :

Central Air Conditioner Brazed Plate Heat Exchanger Refrigeration High Efficiency 0

Central Air Conditioner Brazed Plate Heat Exchanger Refrigeration High Efficiency 1
