OEM Double Splint BPHE Heat Exchanger Refrigeration Plate Heat Exchanger UHP52BV

Basic Information

Place of Origin:	CHINA
Brand Name:	Tenkai
Certification:	ISO9001
Model Number:	UHP52BV

Minimum Order Quantity:	2 wooden packages
Price:	Negotiate/Competitive
Packaging Details:	Wooden Box Package
Delivery Time:	Within 14 days
Payment Terms:	L/C, T/T, D/P, Western Union
Supply Ability:	180pcs/Day

Get Best Price Contact Now

Detail Information

Splint Material:	Q235	Operating Temperature:	200 ℃
Bolt:	M16, M20	Connection Mode:	Male Thread , Female Thread, Flange, SAE Flange, Soldering
Warranty Period:	One Year	Structure:	Plate Heat Exchanger
Design Pressure:	14Mpa	Test Pressure:	21Mpa
Highlight:	Double Splint BPHE Heat Exchanger , Double Splint Refrigeration Plate Heat Exchanger , OEM BPHE Heat Exchanger

Product Description

Maintenance And Serviceability Ultra High Pressure Brazed Plate Heat Exchanger Type Uhp52bv

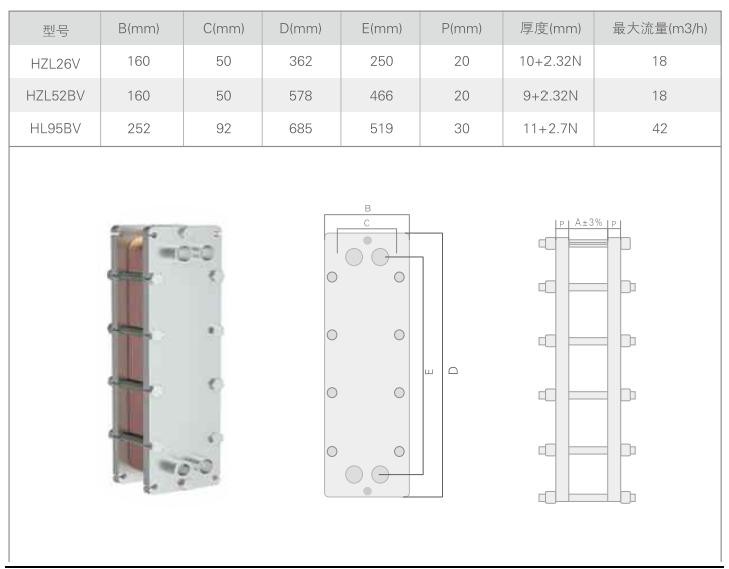

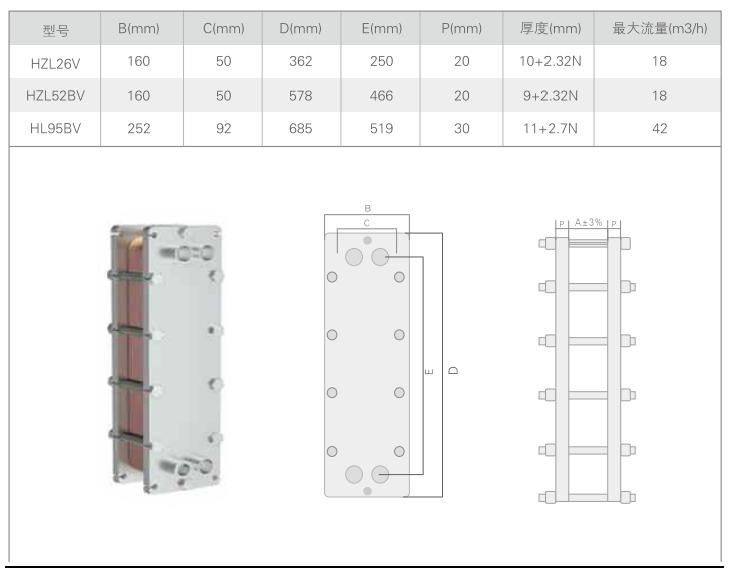

TYPE	B(mm)	C(mm)	D(mm)	E(mm)	THICKNESS(mm)	P ( mm )	MAX FLOW (m3/h)
UHP52BV	160	50	578	466	10+2.32N	20	18

Introduction :

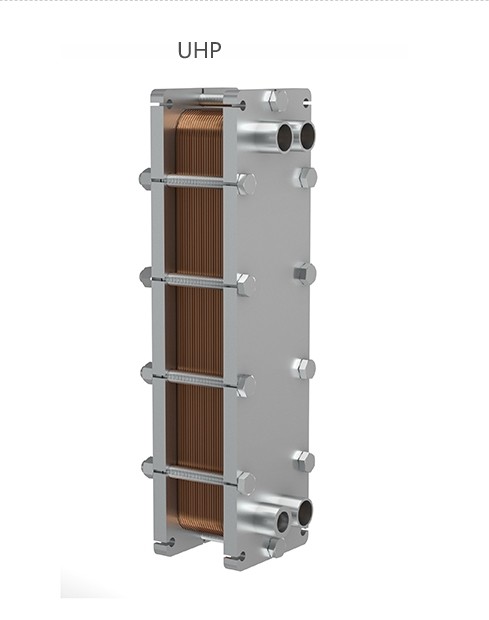

ULTRA HIGH PRESSURE BRAZED Plate Heat Exchanger adopt double splint design , make its compact structure and more pressure-bearing . It can use in heat pump system with R722(CO₂) refrigerating fluid .

High-pressure plate heat exchangers are essential in applications where heat transfer at high pressures is required. Their robust construction, reliable sealing, and efficient heat transfer performance make them suitable for demanding industrial processes that involve high-pressure fluids.

Applicable temperature : 200 ℃

Design Pressure : 14 Mpa

Test Pressure : 21 Mpa

Remark : splint material is Q235 , bolt for M16 , M20 , and available for suited lifting lug , footing , etc .

Workshop :

OEM Double Splint BPHE Heat Exchanger Refrigeration Plate Heat Exchanger UHP52BV 0

OEM Double Splint BPHE Heat Exchanger Refrigeration Plate Heat Exchanger UHP52BV 1

OEM Double Splint BPHE Heat Exchanger Refrigeration Plate Heat Exchanger UHP52BV 2
