High Pressure Brazed Plate Evaporator Employed In Chemical Reactors

Versatility High Pressure Brazed Plate Heat Exchanger Employed In Chemical Reactors, Distillation Columns, And Heat Recovery Systems

Introduction :

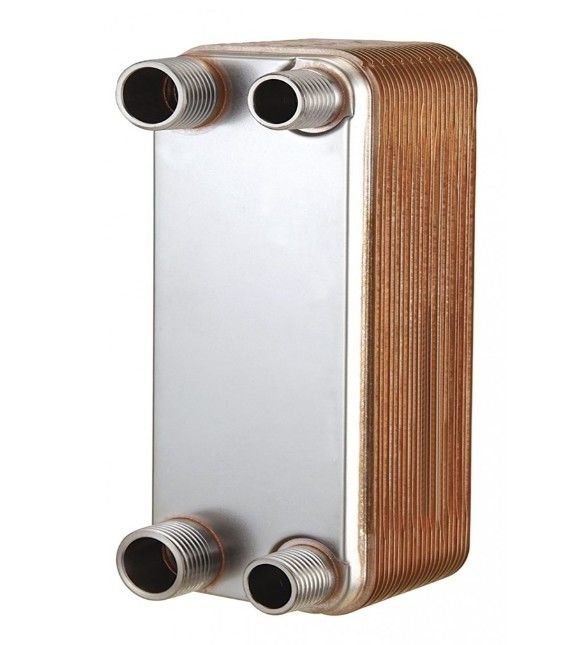

ULTRA HIGH PRESSURE BRAZED Plate Heat Exchanger adopt double splint design , make its compact structure and more pressure-bearing . It can use in heat pump system with R722(CO₂) refrigerating fluid .

The high-pressure brazed plate heat exchanger is a compact and efficient heat transfer device designed for applications that require high-pressure operation. It consists of a series of corrugated metal plates that are brazed together using a high-temperature process. This construction allows for excellent thermal performance and pressure resistance.

The heat exchanger is capable of handling extreme operating conditions, including high pressures and temperatures. It is commonly used in industrial processes such as oil and gas, chemical production, power generation, and refrigeration applications.

Applicable temperature : 200 ℃

Design Pressure : 14 Mpa

Test Pressure : 21 Mpa

Remark : splint material is Q235 , bolt for M16 , M20 , and available for suited lifting lug , footing , etc .

Workshop :

Package Area :

Copper Material :
