Detail Information

Material:	Copper	Copper Design Temperature:	-196 ℃-225 ℃
Copper MAX Design Pressure:	4.5 Mpa	Connection Mode:	Male Thread , Female Thread, Flange, SAE Flange, Soldering
Warranty Period:	12 Months	Structure:	Plate Heat Exchanger
Max Flow:	18m³/h	Max Pressure:	4.5Mpa
Application:	HVAC (Heating, Ventilation, And Air Conditioning)	Weld:	Bazed
Highlight:	Superior Thermal Conductivity Brazed Heat Exchanger , Heat Transfer Brazed Plate Heat Exchanger , Heat Transfer brazed plate condenser

Product Description

Superior Thermal Conductivity Copper Brazed Plate Heat Exchanger For For Efficient Heat Transfer

Brazed Technology :

Brazing is a joining process used to bond two or more metal components together using a filler material called a brazing alloy. It is a method of joining metals that does not involve melting the base metals being joined, unlike welding. Instead, the filler material, which has a lower melting point than the base metals, is heated to its melting temperature and flows between the joint surfaces by capillary action.

Copper plate heat exchanger refers to a type of plate heat exchanger that utilizes copper plates as the primary heat transfer surface. Copper is a highly conductive material known for its excellent thermal conductivity, corrosion resistance, and durability. Copper plate heat exchangers are commonly used in various industries and applications where efficient heat transfer and resistance to corrosion are required.

TYPE	B(mm)	C(mm)	D(mm)	E(mm)	THICKNESS(mm)	WEIGHT(Kg)	MAX FLOW (m3/h)	DESIGN PRESSURE(Mpa)
UFP 10	77	42	155	119	9+1.25N	0.28+0.027N	4	3/4.5
UFP 20A	93	40	323	269	9+1.5N	1+0.09N	8	3/4.5
UFP 42A	121	68	332	279	10+1.53N	2.05+0.11N	18	3/4.5
UFP 62FA	120	63	527	470	10+1.98N	2.379+0.18N	18	3/4.5
UFP 62FB	120	63	527	470	10+1.98N	2.379+0.18N	18	3/4.5
UFP 95FA	182	92	609	519	12+2.05N	15+0.36N	42	3/4.5
UFP 95FB	182	92	609	519	12+2.05N	15+0.36N	42	3/4.5

Workshop :

Superior Thermal Conductivity Brazed Plate Heat Exchanger For For Efficient Heat Transfer 0

Factory Show :

Tag:

Place of Origin:	CHINA
Brand Name:	Tenkai
Certification:	ISO9001-2015

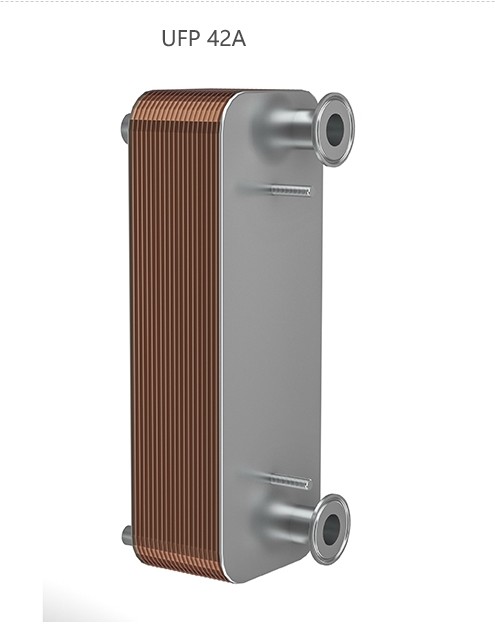

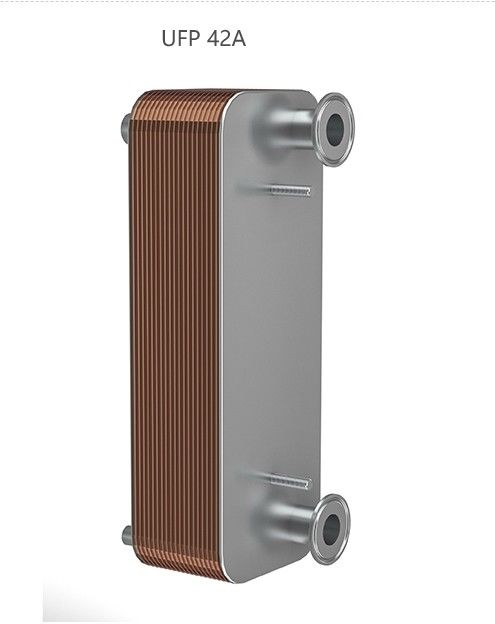

Model Number:	UFP42A

Minimum Order Quantity:	one package
Price:	Negotiate/Competitive
Packaging Details:	Wooden Box Package
Delivery Time:	Within 11 days
Payment Terms:	L/C, T/T, D/P, Western Union
Supply Ability:	350pcs/Day
