Space-Saving Copper Material Plate Heat Exchanger for Industrial Applications
Product Description:
Copper Plate Heat Exchanger is a type of plate cooler heat exchanger, chiller plate heat exchanger, refrigeration plate heat exchanger. It is a highly efficient and durable heat exchanging device for various industrial and commercial applications. It features a compact design, high heat transfer coefficient, low pressure drop, and long service life. The maximum flow rate of the heat exchanger is 8 →300m³/h, and the maximum temperature is 225℃. The maximum pressure of the heat exchanger is 4.5Mpa. The Copper Plate Heat Exchanger is backed by a one-year warranty and its HS CODE is 8419500090.
Features:
- Product Name: Copper Plate Heat Exchanger
- Flow Rate: 8→300m³/h
- Material: Copper
- Type: Plate Heat Exchanger
- Refrigeration Plate Heat Exchanger
- Heat Pump Heat Exchanger
- Design Temperature: -196℃→ 225℃
- Design Pressure: Max 4.5Mpa
Technical Parameters:
| Parameters |
Value |
| Max Temperature |
225℃ |
| Material |
Copper |
| Warranty |
One Year |
| Design Temperature |
-196℃→ 225℃ |
| Type |
Plate Heat Exchanger |
| Connection Type |
SAE Flanged, Flanged, Male Thread, Female Thread, Soldering |
| Size |
Customizable |
| HS CODE |
8419500090 |
| Design Pressure |
Max 4.5Mpa |
| Max Pressure |
4.5Mpa |

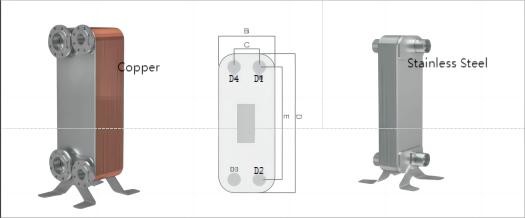

| TYPE |
B(mm |
C(mm |
D(mm) |
E(mm) |
Thickness
(mm)
|
Weight(Kg) |
Max Flow (m3/h) |
Design Pressure (Mpa) |
| SB14 |
77 |
42 |
206 |
172 |
9+2.3N |
0.7+0.06N |
8 |
1/3/4.5 |
| SB16 |
78 |
42 |
208 |
172 |
9+2.24N |
0.6+0.049N |
8 |
1/3/4.5 |
| SB18 |
95 |
50 |
210 |
165 |
7+3.1N |
0.7+0.06N |
8 |
1 |
| SB20B |
78 |
42 |
318 |
282 |
9+2.3N |
1+0.08N |
8 |
3/4.5 |
| SB20C |
77 |
42 |
313 |
278 |
10+1.28N |
0.9+0.07N |
8 |
3/4.5 |
| SB26 |
111 |
50 |
310 |
250 |
10+2.32N |
1.3+0.12N |
18 |
3/4.5 |
| SB26F |
107 |
50 |
307 |
250 |
10+1.98N |
1.3+0.1N |
18 |
3/4.5 |
| SB28B |
120 |
72 |
290 |
243 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB28C |
120 |
63 |
290 |
234 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB30 |
126 |
70 |
307 |
250 |
10+2.35N |
2.2+0.16N |
18 |
3/4.5 |
| SB52A |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.21N |
18 |
3/4.5 |
| SB52B |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.19N |
18 |
3/4.5 |
| SB53 |
106 |
50 |
522 |
466 |
9+2.1N |
2.6+0.27N |
18 |
3/4.5 |
| SB62A |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB62B |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB65 |
125 |
65 |
540 |
480 |
11+2.28N |
2.5+0.228N |
18 |
3/4.5 |
| SB95A |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB95B |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB120A |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB120B |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB190 |
303 |
179 |
695 |
567 |
13+2.3N |
12+0.61N |
100 |
1.6/2.1/3 |
| SB200A |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200B |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200E |
320 |
207 |
742 |
624 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |

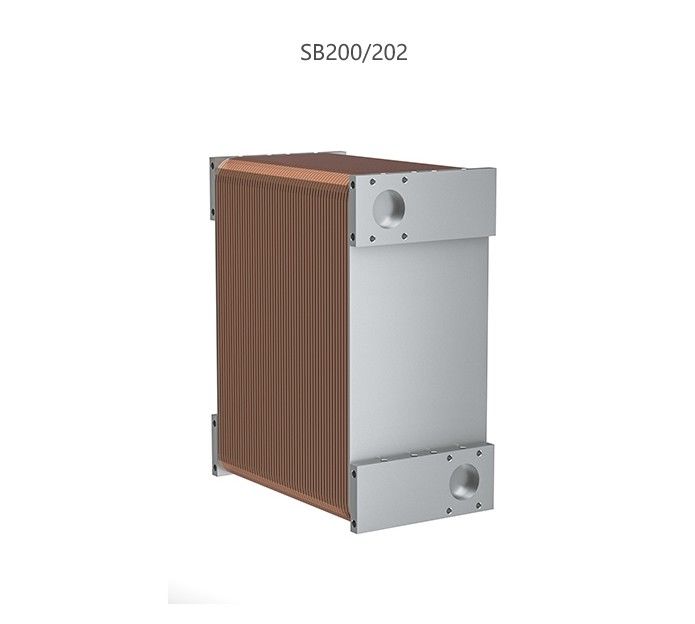

| SB202 |
319 |
188 |
741 |
603 |
16+2.85N |
13+0.957N |
100 |
2.1/3 |
| SB300 |
370 |
118(95.5) |
995 |
861(816) |
17+2.675N |
20+1.26N |
200 |
1.6/2.1/3 |
| SB500 |
304 |
179 |
982 |
854 |
17+2.29N |
26.6+0.93N |
200 |
2.1/3 |
| SB01 |
390 |
204 |
1320 |
1132 |
22+2.75N |
30+1.8N |
300 |
3/4.5 |
Applications:
Copper Plate Heat Exchanger by Tenkai - Durable, Reliable and Competitively Priced
Tenkai is a leading manufacturer of copper plate heat exchangers. Our products are designed with the highest quality materials and engineered for maximum durability, reliability, and efficiency. Our copper plate heat exchangers are perfect for a variety of applications, including refrigeration, heat pumps, plate evaporators, condensers, and more. We have a wide selection of connection types available, including SAE flanged, flanged, male thread, female thread, soldering, and more. Our copper plate heat exchangers are made from high-grade copper and can withstand high pressures of up to 4.5Mpa, making them ideal for both residential and commercial applications.
At Tenkai, we believe in providing our customers with the best value for their money. Our copper plate heat exchangers come with a one-year warranty and are competitively priced. We offer a minimum order quantity of one wooden package and can deliver within five working days. We accept payment through T/T, L/C, D/P, and can supply up to 8000 pieces per month. Our products are ISO certified, guaranteeing their quality and performance.
If you are looking for a reliable and durable copper plate heat exchanger for your refrigerant, heat pump, or other application, look no further than Tenkai. Our products are designed to meet the highest industry standards and are competitively priced. Contact us today to learn more about our copper plate heat exchangers!
Customization:
Customize Your Copper Plate Heat Exchanger with Tenkai
Tenkai is a trusted brand for copper brazed plate heat exchangers. Our plate heat exchangers are perfect for chillers, refrigeration applications, and much more. With our customized service, you can get a copper plate heat exchanger that meets your exact requirements.
- Brand Name: Tenkai
- Place of Origin: China
- Certification: ISO
- Minimum Order Quantity: 1 wooden package
- Price: Competitive
- Packaging Details: Wooden Package
- Delivery Time: Within five working days
- Payment Terms: T/T, L/C, D/P
- Supply Ability: 3800 Pieces/Month
- Material: Copper
- Size: Customizable
- Connection Type: SAE Flanged, Flanged, Male Thread, Female Thread, Soldering
- Warranty: One Year
- Max Temperature: 225℃
Our copper brazed plate heat exchangers are designed for efficiency and long lasting performance. Whether you need a small or large size chiller plate heat exchanger, Tenkai has it. We have the expertise to provide you with a reliable refrigeration plate heat exchanger.
Don't hesitate to contact us for more information about our copper plate heat exchanger. Tenkai is your reliable partner for customized plate heat exchangers.
Support and Services:
Copper Plate Heat Exchanger Technical Support and Services
At [Company], we understand how important it is to get the most out of your Copper Plate Heat Exchanger system. That’s why we offer a range of services to ensure your system runs smoothly and efficiently.
Technical Support
We offer a variety of technical support services tailored to your needs, including:
- Remote diagnostics
- On-site technical support
- 24/7 telephone support
- Technical advice
- Technical documentation
Maintenance and Installation Services
We also provide maintenance and installation services, including:
- Installation of new systems
- Maintenance and repair of existing systems
- Upgrading of existing systems
- Project management
- Commissioning of new systems
Packing and Shipping:
Packaging and Shipping of Copper Plate Heat Exchanger:
The Copper Plate Heat Exchanger will be securely packaged and shipped in an appropriate container, such as a wooden box, to ensure its safe delivery. The package should include the necessary accessories, such as insulation, sealants, and other parts, as well as a detailed instruction manual. The package should be clearly labeled with the appropriate shipping information, such as the destination address, contact information, and any special instructions.
The Copper Plate Heat Exchanger will be shipped using a reliable shipping service, such as FedEx or UPS, to ensure that it arrives at its destination in good condition. All relevant shipping information, such as tracking numbers, should be provided to the customer.
