Cost-Effective Refrigeration Copper Plate Heat Exchanger In Cold Storage Facilities, And Refrigerated Transport
Product Description:
Copper Plate Heat Exchanger is an effective device for transferring heat from one medium to another. It is widely used in various industrial applications, such as chillers, cooling systems, and other high temperature applications. This Copper Plate Heat Exchanger features a max pressure of 4.5Mpa and a design pressure of 4.5Mpa, with a variety of connection types including SAE Flanged, Flanged, Male Thread, Female Thread, and Soldering. Its size is customizable and the material used is Copper, which makes it an ideal chiller plate heat exchanger and plate cooler heat exchanger for heat transfer applications. This Copper Material Plate Heat Exchanger is extremely reliable and efficient and can be used for a variety of industrial applications.
Features:
- Product Name: Copper Plate Heat Exchanger
- HS CODE: 8419500090
- Flow Rate: 8→300m³/h
- Material: Copper
- Size: Customizable
- Design Temperature: -196℃→ 225℃
- High Quality Copper Material Plate Heat Exchanger
- High Efficiency Brazed Plate Evaporator
- Outstanding Performance of Copper Plate Heat Exchanger
Technical Parameters:
| Features |
Specifications |
| Design Pressure |
Max 4.5Mpa |
| Size |
Customizable |
| Material |
Copper |
| Design Temperature |
-196℃→ 225℃ |
| Max Pressure |
4.5Mpa |
| Type |
Plate Heat Exchanger |
| HS CODE |
8419500090 |
| Max Temperature |
225℃ |
| Warranty |
One Year |
| Connection Type |
SAE Flanged, Flanged, Male Thread, Female Thread, Soldering |

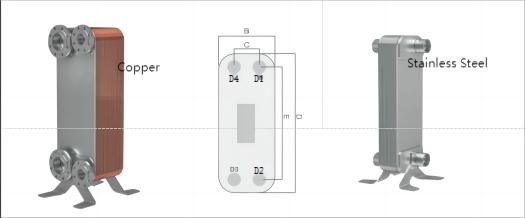

| TYPE |
B(mm |
C(mm |
D(mm) |
E(mm) |
Thickness
(mm)
|
Weight(Kg) |
Max Flow (m3/h) |
Design Pressure (Mpa) |
| SB14 |
77 |
42 |
206 |
172 |
9+2.3N |
0.7+0.06N |
8 |
1/3/4.5 |
| SB16 |
78 |
42 |
208 |
172 |
9+2.24N |
0.6+0.049N |
8 |
1/3/4.5 |
| SB18 |
95 |
50 |
210 |
165 |
7+3.1N |
0.7+0.06N |
8 |
1 |
| SB20B |
78 |
42 |
318 |
282 |
9+2.3N |
1+0.08N |
8 |
3/4.5 |
| SB20C |
77 |
42 |
313 |
278 |
10+1.28N |
0.9+0.07N |
8 |
3/4.5 |
| SB26 |
111 |
50 |
310 |
250 |
10+2.32N |
1.3+0.12N |
18 |
3/4.5 |
| SB26F |
107 |
50 |
307 |
250 |
10+1.98N |
1.3+0.1N |
18 |
3/4.5 |
| SB28B |
120 |
72 |
290 |
243 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB28C |
120 |
63 |
290 |
234 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB30 |
126 |
70 |
307 |
250 |
10+2.35N |
2.2+0.16N |
18 |
3/4.5 |
| SB52A |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.21N |
18 |
3/4.5 |
| SB52B |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.19N |
18 |
3/4.5 |
| SB53 |
106 |
50 |
522 |
466 |
9+2.1N |
2.6+0.27N |
18 |
3/4.5 |
| SB62A |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB62B |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB65 |
125 |
65 |
540 |
480 |
11+2.28N |
2.5+0.228N |
18 |
3/4.5 |
| SB95A |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB95B |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |

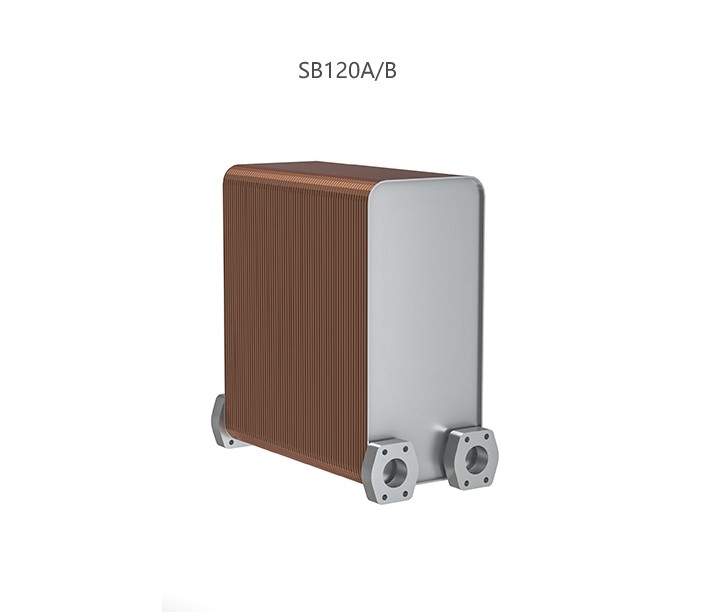

| SB120A |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB120B |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB190 |
303 |
179 |
695 |
567 |
13+2.3N |
12+0.61N |
100 |
1.6/2.1/3 |
| SB200A |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200B |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200E |
320 |
207 |
742 |
624 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB202 |
319 |
188 |
741 |
603 |
16+2.85N |
13+0.957N |
100 |
2.1/3 |
| SB300 |
370 |
118(95.5) |
995 |
861(816) |
17+2.675N |
20+1.26N |
200 |
1.6/2.1/3 |
| SB500 |
304 |
179 |
982 |
854 |
17+2.29N |
26.6+0.93N |
200 |
2.1/3 |
| SB01 |
390 |
204 |
1320 |
1132 |
22+2.75N |
30+1.8N |
300 |
3/4.5 |
Applications:
The Tenkai Copper Plate Heat Exchanger is a type of plate cooler heat exchanger used for refrigeration and heat transfer applications. It is made of high quality copper material, and is designed with a maximum design pressure of 4.5Mpa and a temperature range of -196℃ to 225℃. Certified with ISO, this heat exchanger is available with a competitive price, and can be ordered with a minimum of one wooden package. The HS code for this heat exchanger is 8419500090. The delivery time for this product is within five working days, and the payment terms are T/T, L/C, D/P. Tenkai can supply up to 4600 pieces of this brazed plate evaporator per month, and it is packaged in a wooden package for safe delivery.
Customization:
Copper Plate Heat Exchanger
Brand Name: Tenkai
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 1 wooden package
Price: Competitive
Packaging Details: Wooden Package
Delivery Time: Within five working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 4600 Pieces/Month
Max Pressure: 4.5Mpa
HS CODE: 8419500090
Connection Type: SAE Flanged, Flanged, Male Thread, Female Thread, Soldering
Flow Rate: 8→300m³/h
Warranty: One Year
Tenkai provides heating plate heat exchanger, Copper Brazed Plate Heat Exchanger, and heat pump heat exchanger which are originated in China, certified with ISO, with minimum order of 1 wooden package, competitive price, wooden package delivery within five working days, payment terms of T/T, L/C, D/P, supply ability of 8000 pieces/month, max pressure of 4.5Mpa, HS CODE of 8419500090, connection type of SAE Flanged, Flanged, Male Thread, Female Thread, Soldering, flow rate of 8→300m³/h, and one year warranty.
Support and Services:
Copper Plate Heat Exchanger Technical Support and Services
We offer various technical support and services for Copper Plate Heat Exchanger, including installation, maintenance, and repair. Our expert technicians are available 24/7 to answer your questions and provide assistance. We can help you choose the best copper plate heat exchanger for your needs and budget. We can also help you install, maintain, and repair your copper plate heat exchanger.
We guarantee the highest quality of our copper plate heat exchanger products and services. Our technician team is highly trained and experienced, so you can trust us to provide you with the best possible service. We also provide an extensive warranty to ensure your satisfaction with our products and services.
If you need assistance with your copper plate heat exchanger, don't hesitate to contact us. We are here to help you find the perfect solution for your needs.
Packing and Shipping:
Packaging and Shipping of Copper Plate Heat Exchanger
The Copper Plate Heat Exchanger will be packaged in a sturdy, protective cardboard or wooden box. The box will be clearly labelled and secured with bubble wrap, foam or other cushioning material to prevent damage during shipment.
The Copper Plate Heat Exchanger will be shipped via our trusted courier partners, ensuring safe and timely delivery to the customer’s specified address.
