Dependable Copper Brazed Plate Evaporator for Various Industries
Product Description:
Copper Plate Heat Exchanger is a reliable and efficient water to water plate heat exchanger, plate cooler heat exchanger, and refrigeration plate heat exchanger suitable for a wide range of applications. It is designed with a high-performance plate design and a special sealing gasket to ensure a high heat transfer rate. Its design temperature ranges from -196℃ to 225℃, and its design pressure can reach up to 4.5Mpa. This heat exchanger is highly customizable as it can be ordered with different connection types, such as SAE Flanged, Flanged, Male Thread, Female Thread, and Soldering. It is also capable of operating at a maximum temperature of 225℃.
Features:
- Product Name: Copper Plate Heat Exchanger
- Material: Copper
- Design Pressure: Max 4.5Mpa
- Max Temperature: 225℃
- HS CODE: 8419500090
- Size: Customizable
- Special Features: Copper Material Plate Heat Exchanger, heat pump heat exchanger, brazed plate evaporator, plate and frame evaporator
Technical Parameters:
| Property |
Value |
| Design Temperature |
-196℃ to 225℃ |
| Flow Rate |
8 to 300m³/h |
| Warranty |
One Year |
| HS CODE |
8419500090 |
| Max Temperature |
225℃ |
| Material |
Copper |
| Design Pressure |
Max 4.5Mpa |
| Max Pressure |
4.5Mpa |
| Connection Type |
SAE Flanged, Flanged, Male Thread, Female Thread, Soldering |
| Type |
Water to Water Plate Heat Exchanger, Heating Plate Heat Exchanger, Heat Pump Heat Exchanger |
| TYPE |
B(mm |
C(mm |
D(mm) |
E(mm) |
Thickness
(mm)
|
Weight(Kg) |
Max Flow (m3/h) |
Design Pressure (Mpa) |
| SB14 |
77 |
42 |
206 |
172 |
9+2.3N |
0.7+0.06N |
8 |
1/3/4.5 |
| SB16 |
78 |
42 |
208 |
172 |
9+2.24N |
0.6+0.049N |
8 |
1/3/4.5 |
| SB18 |
95 |
50 |
210 |
165 |
7+3.1N |
0.7+0.06N |
8 |
1 |
| SB20B |
78 |
42 |
318 |
282 |
9+2.3N |
1+0.08N |
8 |
3/4.5 |
| SB20C |
77 |
42 |
313 |
278 |
10+1.28N |
0.9+0.07N |
8 |
3/4.5 |
| SB26 |
111 |
50 |
310 |
250 |
10+2.32N |
1.3+0.12N |
18 |
3/4.5 |
| SB26F |
107 |
50 |
307 |
250 |
10+1.98N |
1.3+0.1N |
18 |
3/4.5 |
| SB28B |
120 |
72 |
290 |
243 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB28C |
120 |
63 |
290 |
234 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB30 |
126 |
70 |
307 |
250 |
10+2.35N |
2.2+0.16N |
18 |
3/4.5 |
| SB52A |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.21N |
18 |
3/4.5 |
| SB52B |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.19N |
18 |
3/4.5 |
| SB53 |
106 |
50 |
522 |
466 |
9+2.1N |
2.6+0.27N |
18 |
3/4.5 |
| SB62A |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB62B |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB65 |
125 |
65 |
540 |
480 |
11+2.28N |
2.5+0.228N |
18 |
3/4.5 |
| SB95A |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |

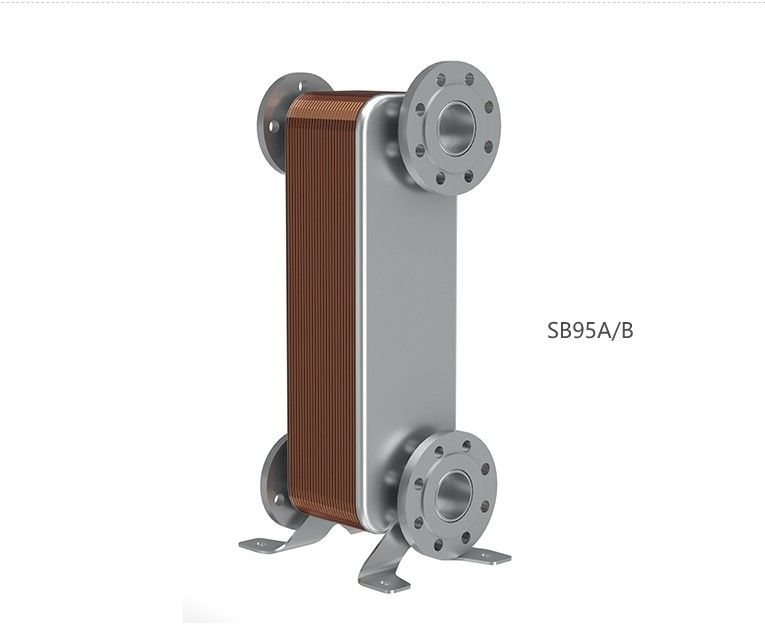

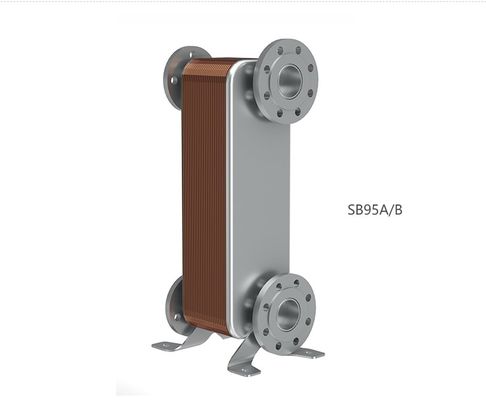

| SB95B |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB120A |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB120B |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB190 |
303 |
179 |
695 |
567 |
13+2.3N |
12+0.61N |
100 |
1.6/2.1/3 |
| SB200A |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200B |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200E |
320 |
207 |
742 |
624 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB202 |
319 |
188 |
741 |
603 |
16+2.85N |
13+0.957N |
100 |
2.1/3 |
| SB300 |
370 |
118(95.5) |
995 |
861(816) |
17+2.675N |
20+1.26N |
200 |
1.6/2.1/3 |
| SB500 |
304 |
179 |
982 |
854 |
17+2.29N |
26.6+0.93N |
200 |
2.1/3 |
| SB01 |
390 |
204 |
1320 |
1132 |
22+2.75N |
30+1.8N |
300 |
3/4.5 |
Applications:
Tenkai's Copper Plate Heat Exchanger is a high-quality and reliable choice for a range of applications. It is made in China and certified with ISO for excellent quality assurance and performance. It comes in a variety of sizes and pressure ratings, with a minimum order quantity of 1 wooden package. The price is competitive and the packaging is wooden package for secure delivery. The delivery time is within five working days and payment terms are T/T, L/C, D/P. This heat exchanger has a maximum pressure of 4.5Mpa and a flow rate of 8→300m³/h. It is suitable for a variety of applications, including brazed plate evaporator, heat pump heat exchanger and other applications where copper material plate heat exchanger is required. This heat exchanger is reliable and efficient, and the supply ability is 8000 pieces/month.
Customization:
Customized Service for Copper Plate Heat Exchanger
We offer custom-made plate cooler heat exchangers, Copper Material Plate Heat Exchangers and brazed plate evaporators with the following features:
- Brand Name: Tenkai
- Place of Origin: China
- Certification: ISO9001
- Minimum Order Quantity: 1 wooden package
- Price: Competitive
- Packaging Details: Wooden Package
- Delivery Time: Within five working days
- Payment Terms: T/T, L/C, D/P
- Supply Ability: 3600 Pieces/Month
- Flow Rate: 8→300m³/h
- HS CODE: 8419500090
- Type: Plate Heat Exchanger
- Warranty: One Year
- Design Pressure: Max 4.5Mpa
Our plate cooler heat exchangers, Copper Material Plate Heat Exchangers and brazed plate evaporators are of high quality and competitive prices. Contact us now for more details.
Support and Services:
Copper Plate Heat Exchanger provides a wide variety of technical support and services to ensure the highest quality of products and customer satisfaction. Our technical support team is knowledgeable and experienced in all aspects of the product and will provide you with the best advice and solutions to help you get the most out of your product.
We offer a comprehensive range of services to help you get the most out of your Copper Plate Heat Exchanger, including installation, maintenance, troubleshooting, and repairs. Our experienced technicians are available to provide you with the most comprehensive support and solutions for your product.
We also provide technical support and training services to help you understand the operation and maintenance requirements of the product. Our technical support team is available to answer any questions you may have and provide you with expert advice and solutions.
In addition, we offer a range of after-sales services, including product warranties, extended warranties, and customer service. Our customer service team is available to help you with any queries or issues you may have.
Packing and Shipping:
Packaging and Shipping for Copper Plate Heat Exchanger:
- The product will be securely packaged in polyethylene or corrugated cardboard boxes.
- The products will be shipped via FedEx, UPS, DHL, or any other carrier of choice.
- The products will be shipped with proper care and attention to ensure safe delivery.
- The products will be shipped with the necessary paperwork to ensure a smooth transition through customs.
